Mini Industrial 3-Port 10/100/1000T + 1-Port 1000X SC Gigabit Ethernet Switch

Name: Mini Industrial 3Port 101001000T 1Port 1000X SC Gigabit Ethernet Switch
Brand: E-link
Price: 1 USD

Wholesale Mini Industrial 3-Port 10/100/1000T + 1-Port 1000X SC Gigabit Ethernet Switch from china suppliers

Brand Name : E-link

Model Number : LNK-IMC103G

Certification : CE, RoHS, FCC

Place of Origin : China

MOQ : 1pcs

Price : negotiation

Payment Terms : L/C, T/T, Western Union, MoneyGram, Paypal

Supply Ability : 1000pcs/month

Delivery Time : 5-12 working days

Packaging Details : Mini Ethernet Switch Standard Export Package

Key Word : Mini Industrial Ethernet Switch

Mounting Options : DIN-Rail / Wall-mount

Input Power : 12~48VDC

Operating Temperature : -40°C to 75°C

Weight : 0.25Kg

Dimensions : 95 x 70x 30m

Contact Now

Mini Industrial Ethernet Switch Advantages

► 3-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function

► 1-port 1000Base-X SC Fiber

► Supports Full/Half-duplex, Auto-negotiation

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► 12~48VDC Terminal Block Power Input

Technical Indexes

Interface
Connector:	3 x RJ45
Optical Port:	1 x SC 1000Base-X
Electrical and Mechanical
Input Power:	12~48VDC, 2-pin terminal block
Power Consumption:	5W Max.
LED Indicators:
PWR:	Power Status
L/A:	Ethernet LINK Status
FX:	Fiber LINK Status
Dimensions (WxDxH):	95 x 70 x 30 mm
Weight:	0.25Kg
Casing:	Aluminum Case

Overview

LNK-IMC103G Series is an industrial-grade Gigabit Ethernet Switch, featuring three 10/100/1000BASE-T copper ports and

one 1000BASE-X SC fiber port and packed in an IP40-rated rugged but compact-size case. It is a hardened grade product

whose operating temperature range is -40°C to +75°C.

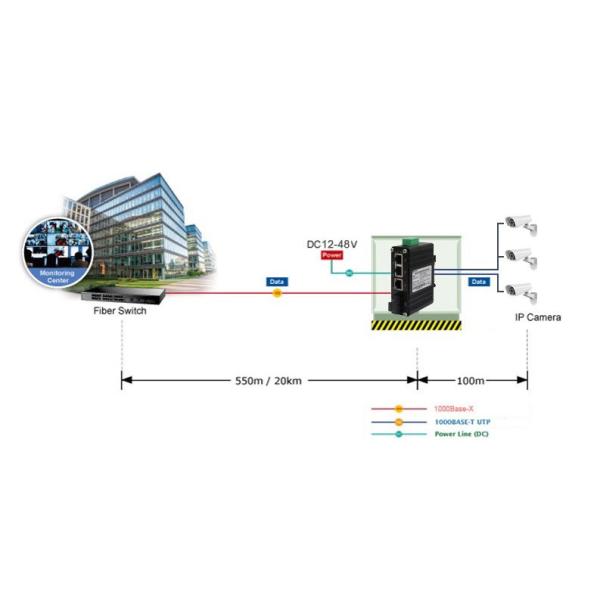

Mini Industrial 3-Port 10/100/1000T + 1-Port 1000X SC Gigabit Ethernet Switch

Ordering Information

Model	Description
LNK-IMC103G	Mini Industrial 3-Port 10/100/1000T + 1-Port 1000X SC Gigabit Ethernet Switch, SC Fiber Port, Multimode, Dual Fiber, 850nm, 550m
LNK-IMC103G-20	Mini Industrial 3-Port 10/100/1000T + 1-Port 1000X SC Gigabit Ethernet Switch, SC Fiber Port, Single Mode, Dual Fiber, 1310nm, 20km
LNK-IMC103GS-20A	Mini Industrial 3-Port 10/100/1000T + 1-Port 1000X SC Gigabit Ethernet Switch, SC Fiber Port, Single Mode, Single Fiber, 1310nm TX/1550nm RX, 20km
LNK-IMC103GS-20B	Mini Industrial 3-Port 10/100/1000T + 1-Port 1000X SC Gigabit Ethernet Switch, SC Fiber Port, Single Mode, Single Fiber, 1550nm TX/1310nm RX, 20km
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block
Power Options	► Power Supply is to be purchased separately.
