HDMI Over CAT5 / CAT6 Extender With IR & TCP/IP 120 Meters 1080P 60Hz

  • 1
  • 2

Brand Name : E-link

Model Number : LNK-HDE-120

Certification : ROHS,FCC,CE

Place of Origin : China

MOQ : 1pair

Price : Negotiation

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 1000pairs/month

Delivery Time : 5-12 working days

Packaging Details : HDMI Over CAT5 / CAT6 Extender Standard Export Package

Product Name : HDMI Over CAT5 / CAT6 Extender

Video Standards : HDMI 1.3; HDCP 1.2

Resolution : 1920X1080p 60Hz

Control Mode : IR, TCP, IP

Cable : CAT5e/6 UTP Cable

Transmission Distance : Up to 120 Meters

IR Interface : 3.5mm earphone seat

Ethernet Interface : RJ45（568B）

Dimension : 100*97.5*17mm

Operating Temperature : -5℃ ~ +70℃

Contact Now

HDMI Over CAT5 / CAT6 Extender With IR & TCP/IP 120 Meters 1080P 60Hz

HDMI Extender Over Coaxial Cable Advantage
► Aluminum shell, compact size and Slim design, more beautiful than iron shell, strong anti-interference, Wall-mounted type
► Auto adjustment to match the cable length
► The highest resolutions supported is up to 1080P@60Hz
► Support EDID pass-through
► Only one power adapter is needed for the TX, the RX can be powered by the TX over network cable.

120m HDMI Over CAT6 Transmitter Receiver Overview

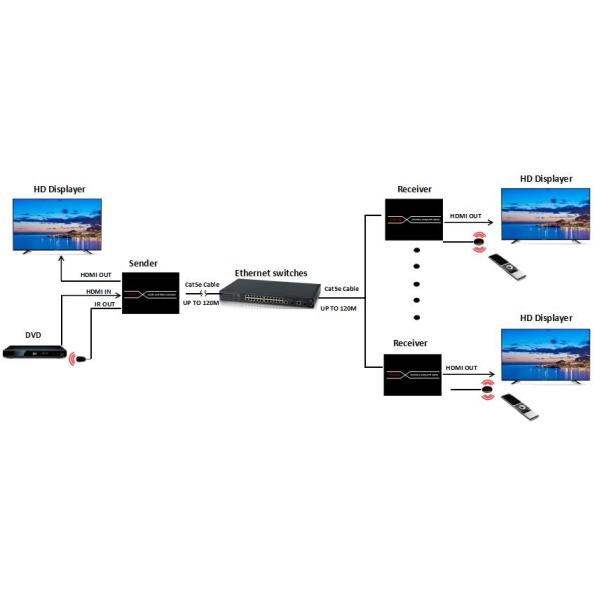

This HDMI Extender includes a transmitter unit (TX) and a receiver unit(RX), working as a pair. It allows for transmission and extension full HD 1080p@60Hz HDMI signal via CAT5e/6 UTP network cable, the transmission distance is up to 120meters; Support point to multi-point over Ethernet switch over IP. At the same time, the signal is stable, and the built-in EDID greatly improves the compatibility of the device.

HDMI Extender Over CAT5/6 Cable Technical Indexes

Parameter

Description

Video

Standards

HDMI 1.3; HDCP 1.2

Maximum pixel clock

165MHz

Maximum data rate

6.75Gbps

Resolution

Max: 1920X1080@60Hz

Connector

HDMI-A

Impedance

100Ω

IR

Interface

3.5mm earphone seat

Signal direction

Unidirectional

Signal type

Digital

IR frequency

38kHz

Ethernet

Interface

RJ45(568B)

Transmission distance

UTP CAT5e---120m

Other

Power supply

The power adapter: DC 5V

Power dissipation

MAX 4W

Temperature

Operating: -5℃ ~ +70℃

Humidity

Operating: 5% ~ 90%

Dimension

100*97.5*17mm

The warranty

1 year free warranty

HDMI Over CAT5 / CAT6 Extender With IR & TCP/IP 120 Meters 1080P 60Hz
HDMI Over CAT5 / CAT6 Extender With IR & TCP/IP 120 Meters 1080P 60Hz
1080P 60Hz HDMI Extender Over Coaxial Cable Ordering Information

Model

Description
LNK-HDE-120

HDMI Over CAT5/CAT6 Extender with IR - 395 ft (120m), including 1 Transmitter & 1 Receiver, used by pairs
