EN55022 Standard Mini Industrial PoE Switch DIN Rail Type Media Converter

  • 1
  • 2
  • 3

Brand Name : E-link

Model Number : LNK-IMC3012P-SFP

Certification : ROHS,FCC,CE

Place of Origin : China

MOQ : 1 pcs

Price : Negotiation

Payment Terms : L/C, T/T, Western Union, MoneyGram, Paypal

Supply Ability : 1000 pcs/month

Delivery Time : 5-12 working days

Packaging Details : PoE Media Converter Standard Export Package

Keywords : Industrial PoE Media Converter

Input Power : 12~48VDC, 4-pin terminal block

Output Power : 48VDC

RJ45 Port : 1 Port 10/100/1000BASE-X 802.3at

Fiber Port : 1 Port 100/1000BASE-X SFP

Mounting Options : DIN-Rail / Wall-mount

Contact Now

EN55022 Standard Mini Industrial PoE Switch DIN Rail Type Media Converter

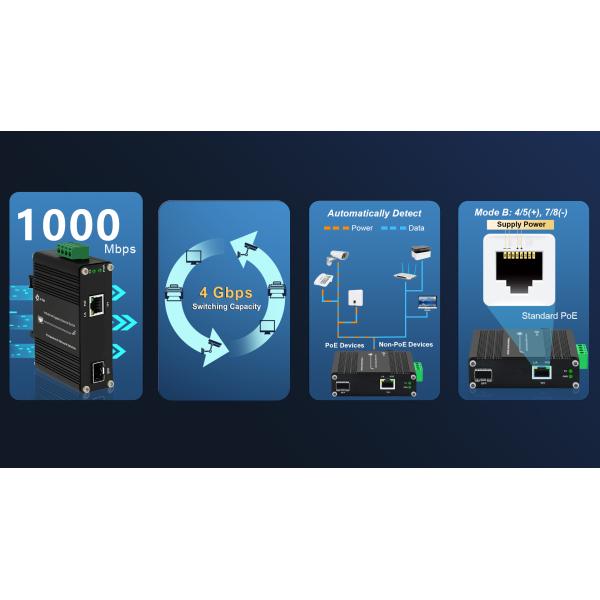

Mini Industrial PoE Media Converter 100/1000BASE-X SFP To 10/100/1000BASE-T 30W


PoE Media Switch 30W Advantages

► 1-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function

► 1 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection)

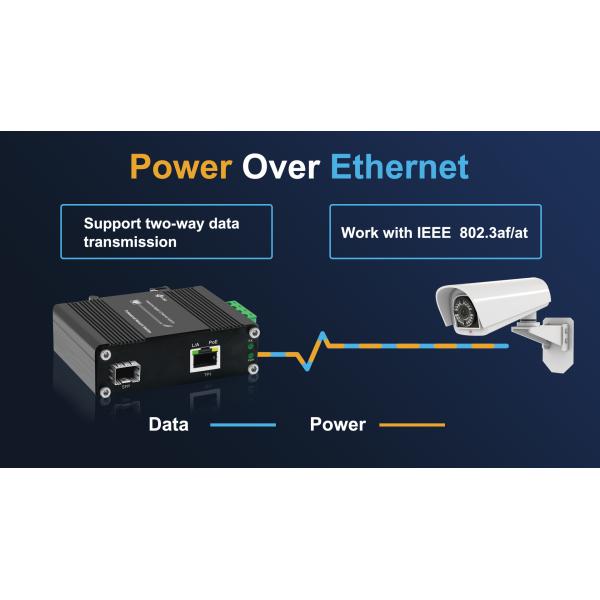

► Supports IEEE802.3af PoE (15.4W) or IEEE802.3at PoE+(30W)

► 12~48VDC Terminal Block Power Input

► Environmentally hardened -40°C to 75°C

Fiber Media Converter Switch Overview

LNK-IMC3012P-SFP is a DIN rail type media converter that supports external SFP Modules and meets EN55022 standard. The Ethernet port support high power PoE (Power Sourcing Equipment) which complies with IEEE802.3at standard. It is a hardened grade product whose operating temperature range is -40°C to +75°C. LNK-IMC3012P-SFP supports 10/100/1000Base-T with 30W PoE+ and 100/1000Base-X SFP Port.

Din Rail Media Converter Technical Indexes

Standards:

IEEE802.3 10Base-T

IEEE802.3u 100Base-TX/FX

IEEE802.3ab 1000Base-T

IEEE802.3z 1000Base-X

IEEE 802.3az Energy Efficient Ethernet (EEE)

IEEE802.3af Power over Ethernet

IEEE802.3at Power over Ethernet

Connector:

1x RJ45

Optical Port:

1 x SFP 1000Base-X or 100Base-FX (auto detection)

Input Power:

12~48VDC, 4-pin terminal block

Output Power

48VDC

Power Consumption:

36W Max.

Dimensions (WxDxH):

95 x 70 x 30 mm

Weight:

0.25Kg

Casing:

Aluminum Case

Mounting Options:

DIN-Rail / Wall-mount

Operating Temperature:

-40°C to 75°C (-40°F to 167°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF

> 200,000 hrs

Regulatory Approvals

ISO9001, CE, FCC, RoHS

EN55022 Standard Mini Industrial PoE Switch DIN Rail Type Media Converter

EN55022 Standard Mini Industrial PoE Switch DIN Rail Type Media Converter

Industrial 802.3at Media Converter Ordering Information

Model

Description

LNK-IMC3012P-SFP

Hardened 10/1001000BASE-TX to 100/1000BASE-X SFP Ethernet Media Converter with PoE+

SFP Options

► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).

► SFP module is to be purchased separately.

Mounting Options

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.

Power Options

► 75W/1.6A 48VDC Power Supply. Open Wire for Terminal Block

► Power Supply is to be purchased separately.
